Lecture 4: Divide and Conquer: van Emde Boas Trees¶

Series of Improved Data Structures¶

• Insert, Successor
• Delete
• Space

This lecture is based on personal communication with Michael Bender, 2001.

Goal¶

We want to maintain n elements in the range {0, 1, 2, ..., u-1} and perform Insert, Delete, and Successor operations in O(log log u) time.

• If n = n^O(1) or n^(log n)^O(1), then we have O(log log n) time operations.
• Exponentially faster than Balanced Binary Search Trees.
• Cooler queries than hashing.
• Application: Network Routing Tables.

Where might the O(log log u) bound arise?
- Binary search over O(log u) elements.
- Recurrences:

Improvements¶

We will develop the van Emde Boas data structure by a series of improvements on a very simple data structure.

Bit Vector¶

We maintain a vector V of size u such that V[x] = 1 if and only if x is in the set. Now, inserts and deletes can be performed by just flipping the corresponding bit in the vector. However, successor/predecessor requires us to traverse through the vector to find the next 1-bit.

• Insert/Delete: O(1)
• Successor/Predecessor: O(u)

| 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 1 |

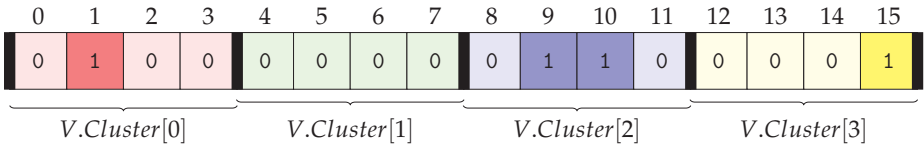

Figure 1: Bit vector for u = 16. The current set is {1, 9, 10, 15}.

Split Universe into Clusters¶

We can improve performance by splitting up the range {0, 1, 2, ..., u-1} into sqrt(u) clusters of size sqrt(u). If x = i * sqrt(u) + j, then V[x] = V.cluster[i][j].

• Insert:
• Set V.cluster[high(x)][low(x)] = 1 O(1)
• Mark cluster high(x) as non-empty O(1)
• Successor:
• Look within cluster high(x) O(sqrt(u))
• Else, find next non-empty cluster i
• Find minimum entry j in that cluster O(sqrt(u))
• Return index(i, j) Total = O(sqrt(u))

Recurse¶

The three operations in Successor are also Successor calls to vectors of size sqrt(u). We can use recursion to speed things up.

• V.cluster[i] is a size -sqrt(u) van Emde Boas structure (∀ 0 ≤ i < sqrt(u))
• V.summary is a size -sqrt(u) van Emde Boas structure
• V.summary[i] indicates whether V.cluster[i] is nonempty

INSERT(V, x)
1 Insert(V.cluster[high(x)], low(x))
2 Insert(V.summary, high(x))

So, we get the recurrence:

SUCCESSOR(V, x)
1 i = high(x)
2 j = Successor(V.cluster[i], j)
3 if j == ∞
4   i = Successor(V.summary, i)
5   j = Successor(V.cluster[i], -∞)
6 return index(i, j)

To obtain the O(log log u) running time, we need to reduce the number of recursions to one.

Maintain Min and Max¶

We store the minimum and maximum entry in each structure. This gives an O(1) time overhead for each Insert operation.

SUCCESSOR(V, x)
1 i = high(x)
2 if low(x) < V.cluster[i].max
3   j = Successor(V.cluster[i], low(x))
4 else
5   i = Successor(V.summary, high(x))
6   j = V.cluster[i].min
7 return index(i, j)

$$
\begin{align}
T(u) &= T(\sqrt{u}) + O(1) \
\Longrightarrow T(u) &= O(\log log u)
\end{align}
$$

## Don't store Min recursively
The Successor call now needs to check for the min separately.

INSERT(V, x)
1 if V.min == None
2   V.min = V.max = x (O(1) time)
3 return
4 if x < V.min
5   swap(x ↔ V.min)
6 if x > V.max
7   V.max = x
8 if V.cluster[high(x)] == None
9   Insert(V.summary, high(x)) First Call
10  Insert(V.cluster[high(x)], low(x)) Second Call

If the first call is executed, the second call only takes O(1) time. So

DELETE(V, x)
1 if x == V.min Find new min
2   i = V.summary.min
3   if i == None
4     V.min = V.max = None (O(1) time)
5     return
6   V.min = index(i, V.cluster[i].min) Unstore new min
7 Delete(V.cluster[high(x)], low(x)) First Call
8 if V.cluster[high(x)].min == None
9   Delete(V.summary, high(x)) Second Call
10 Now we update V.max
11 if x == V.max
12   if V.summary.max == None
13   else
14     i = V.summary.max
15     V.max = index(i, V.cluster[i].max)

If the second call is executed, the first call only takes O(1) time. So

Lower Bound [Patrascu & Thorup 2007]¶

Even for static queries (no Insert/Delete)
- Ω(log log u) time per query for u = n^(log n)^O(1)
- O(n * poly(log n)) space

Space Improvements¶

We can improve from Θ(u) to O(n log log u).
- Only create nonempty clusters
- If V.min becomes None, deallocate V
- Store V.cluster as a hashtable of nonempty clusters
- Each insert may create a new structure Θ(log log u) times (each empty insert) - Can actually happen [Vladimir Čunát]
- Charge pointer to structure (and associated hash table entry) to the structure This gives us O(n log log u) space (but randomized).

Indirection¶

We can further reduce to O(n) space.
- Store vEB structure with n = O(log log u) using BST or even an array ⟹ O(log log n) time once in base case
- We use O(n / log log u) such structures (disjoint)

• Larger structures "store" pointers to them
