Machine-Level Programming II: Control¶

15-213/14-513/15-513: Introduction to Computer Systems
4^th Lecture, Sept 5, 2024

---

📌 Overview¶

• Key Topics:
• Condition Codes (EFLAGS)
• Conditional Branches & Loops
• Switch Statements
• References: CSAPP 3.6.1–3.6.8

---

🔍 Review: Machine Instructions & Addressing Modes¶

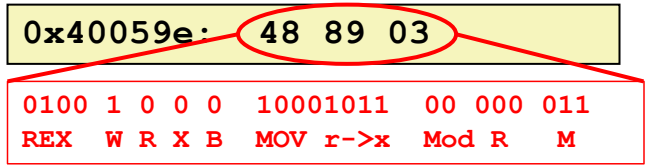

1️⃣ movq Instruction¶

• C Code: *dest = t;
• Assembly: movq %rax, (%rbx)
• Moves 8-byte value from %rax to memory location M[%rbx].
• Operands:
  • t: Register %rax
  • dest: Memory M[%rbx]

---

2️⃣ General Addressing Mode¶

• Syntax: D(Rb, Ri, S)
• Meaning: Mem[Reg[Rb] + S * Reg[Ri] + D]
• Components:
  • D: Displacement (½/4 bytes)
  • Rb: Base register
  • Ri: Index register (≠ %rsp)
  • S: Scale (½/4/8)

Special Cases:¶

Syntax	Meaning
(Rb)	Mem[Reg[Rb]]
(Rb, Ri)	Mem[Reg[Rb] + Reg[Ri]]
D(Rb, Ri)	Mem[Reg[Rb] + Reg[Ri] + D]
(Rb, Ri, S)	Mem[Reg[Rb] + S * Reg[Ri]]

---

3️⃣ lea vs. Memory Access¶

• lea (Load Effective Address):
• Does NOT access memory! Computes address and stores it in a register.
• Example:

  GAS

  lea 6(%rbx, %rdi, 8), %rax  # rax = rbx + rdi*8 + 6


• Use Cases:
  • Pointer arithmetic (e.g., array indexing).
  • Multi-operand calculations (e.g., rax = rbx * 3 via lea (%rbx, %rbx, 2), %rax).

---

🚩 Condition Codes (EFLAGS)¶

Implicitly set by arithmetic/logical operations:
- CF (Carry Flag): Unsigned overflow.
- ZF (Zero Flag): Result is zero.
- SF (Sign Flag): Result is negative (signed).
- OF (Overflow Flag): Signed overflow.

⚙️ cmp and test Instructions¶

• cmp a, b: Computes b - a and sets flags.
• test a, b: Computes b & a and sets flags (SF/ZF).
• Common use: test %rax, %rax to check if %rax is zero.

---

🔀 Conditional Branches¶

Jump Table (jX Instructions)¶

Instruction	Condition	Description
jmp	Always	Unconditional jump
je/jz	ZF=1	Jump if equal/zero
jne/jnz	ZF=0	Jump if not equal
jg	~(SF^OF) & ~ZF	Jump if greater (signed)
ja	~CF & ~ZF	Jump if above (unsigned)

---

🔄 Loops in Assembly¶

1️⃣ Do-While Loop¶

• C Code:

  C

  long pcount_do(unsigned long x) {
      long result = 0;
      do {
          result += x & 0x1;
          x >>= 1;
      } while (x);
      return result;
  }


• Assembly:

  GAS

  movl $0, %eax       # result = 0
  .L2:
  movq %rdi, %rdx     # t = x
  andl $1, %edx       # t &= 0x1
  addq %rdx, %rax     # result += t
  shrq %rdi           # x >>= 1
  jne .L2             # if (x != 0) goto loop
  ret


---

2️⃣ While Loop (Jump-to-Middle)¶

• C Code:

  C

  long pcount_while(unsigned long x) {
      long result = 0;
      while (x) {
          result += x & 0x1;
          x >>= 1;
      }
      return result;
  }


• Assembly:

  GAS

  movl $0, %eax       # result = 0
  jmp .L2
  .L3:
  movq %rdi, %rdx     # t = x
  andl $1, %edx       # t &= 0x1
  addq %rdx, %rax     # result += t
  shrq %rdi           # x >>= 1
  .L2:
  testq %rdi, %rdi    # Test x
  jne .L3             # if (x != 0) goto loop
  ret


---

🔀 Switch Statements¶

• Jump Table: Maps case values to code addresses.

• Example:


  C

  long my_switch(long x, long y, long z) {
      long w = 1;
      switch (x) {
          case 1: w = y*z; break;
          case 2: w = y/z; /* Fall through */
          case 3: w += z; break;
          case 5: case 6: w -= z; break;
          default: w = 2;
      }
      return w;
  }


• Assembly:


  GAS

  my_switch:
    cmpq $6, %rdi        # Compare x to 6
    ja .L8               # If x > 6, jump to default
    jmp *.L4(,%rdi,8)    # Jump via table at .L4 + x*8
  .L3:
    movq %rsi, %rax      # w = y
    imulq %rdx, %rax     # w *= z
    ret
  .L5:
    movq %rsi, %rax
    cqto
    idivq %rcx           # w = y/z
    jmp .L9
  .L9:
    addq %rdx, %rax      # w += z
    ret
  .L7:
    movq $1, %rax
    subq %rdx, %rax      # w -= z
    ret
  .L8:
    movq $2, %rax        # default: w = 2
    ret


---

📊 Register Usage Table¶

Register	Use(s)
%rdi	Argument x
%rsi	Argument y
%rdx	Argument z
%rax	Return value w

---

🎯 Key Takeaways¶

1. Condition Codes: Set implicitly by arithmetic operations.
2. Branches: Use jX instructions to control flow.
3. Loops: Translated into conditional jumps and labels.
4. Switch Statements: Implemented via jump tables for efficiency.

---

📝 Activity Time!¶

1. Parts 1-4 (Q1-Q6): Practice with condition codes and loops.
2. Parts 5-6 (Q7-Q11): Explore conditional moves and switch statements.
3. Canvas Quiz: Complete the Day 4 quiz.
