Lecture #03: Database Storage (Part I)¶

15-445/645 Database Systems (Spring 2025)
Carnegie Mellon University
Prof. Jignesh Patel

1. Storage Hierarchy¶

Key Concepts:¶

• Disk-Oriented DBMS: Primary storage is non-volatile disk.
• Volatile vs. Non-Volatile Devices:
• Volatile (Memory):
  • 🚨 Data lost on power loss (e.g., DRAM).
  • Byte-addressable, fast random access.
• Non-Volatile (Disk):
  • 💾 Data retained on power loss (e.g., HDD, SSD).
  • Block/page addressable (e.g., read 4KB pages).
  • Optimized for sequential access.

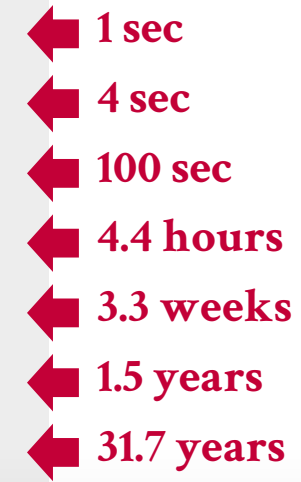

Latency Comparison (Humanized Scale):¶

• If L1 Cache = 1 second:
• SSD read ≈ 4.4 hours
• HDD read ≈ 3.3 weeks

2. Disk-Oriented DBMS Architecture¶

Components:¶

1. Buffer Pool: Manages data movement between disk and memory.
2. Execution Engine: Executes queries by requesting pages from the buffer pool.

Key Design Goals:¶

• Handle databases larger than memory.
• Minimize disk stalls (optimize sequential access).

3. DBMS vs. OS¶

Why DBMS Avoids OS Virtual Memory (mmap):¶

• 🚫 Page Faults Block Execution: DBMS loses control over I/O scheduling.
• Better Alternatives:
• madvise(): Hint OS about future page accesses.
• mlock(): Prevent OS from swapping pages.
• msync(): Force flush pages to disk.

Lesson: "The OS is not your friend."

4. File Storage¶

Basics:¶

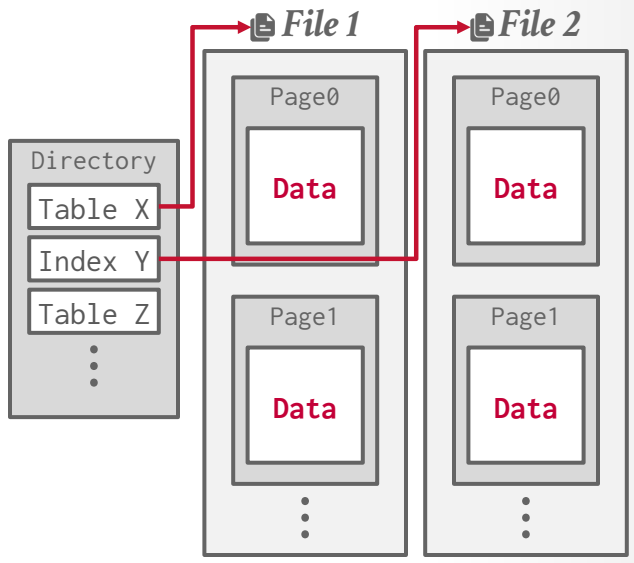

• DBMS stores databases as files (single or multiple).
• Storage Manager:
• Manages files as a collection of pages.
• Tracks free space, read/write status, and page types.

Example: SQLite¶

• Uses a single file for simplicity.

5. Database Pages¶

Types of Pages:¶

1. Hardware Page: 4KB (atomic write guarantee).
2. OS Page: 4KB (or 2MB/1GB for x64).
3. Database Page: 1KB–32KB (configurable).

Page ID Management:¶

• Unique page ID per page.
• Indirection layer maps IDs to file paths/offsets.

Default Page Sizes:
- PostgreSQL: 8KB
- MySQL: 16KB
- SQLite: 4KB

6. Heap File Organization¶

Definition:¶

• Unordered collection of pages (tuples stored randomly).

Page Tracking Methods:¶

1. Linked List:
   - Header page tracks free/data pages.
   - Sequential scan required for page lookup.
2. Page Directory:
   - Special directory pages track data page locations and metadata.

7. Page Layout¶

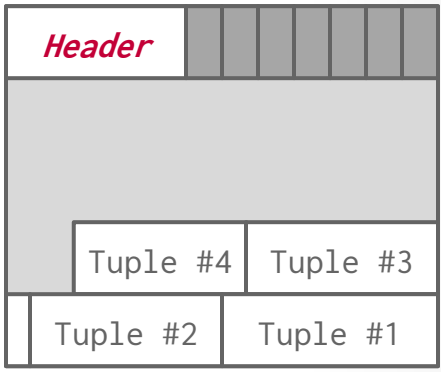

Slotted Pages (Most Common):¶

• Structure:
• Header tracks slot count and free space offset.
• Slot Array maps slots to tuple offsets.
• Tuples grow from the end backward; slots grow forward.

Example:
- Adding a new tuple:
1. Allocate slot in the slot array.
2. Write tuple data from the end of the page.
- Deleting a tuple:
- Mark slot as unused; free space can be reused.

8. Tuple Layout¶

Components:¶

1. Header:
   - Visibility info (concurrency control).
   - NULL bitmap.
2. Data: Attributes stored in schema order.

Example:

| Header (Visibility, NULL bits) | a (INT) | b (DOUBLE) | c (VARCHAR) | ...

Denormalized Tuples:¶

• Pre-join: Store related tuples (e.g., joined tables) in the same page.
• Pros: Fewer I/O operations for common queries.
• Cons: Updates become more complex.

Key Takeaways¶

• Disk vs. Memory: Optimize for sequential access to minimize latency.
• Page Management: Slotted pages dominate for flexibility.
• DBMS Control: Avoid OS interference for performance and correctness.

Next Lecture: Log-Structured Storage, Index-Organized Storage, and Catalogs 📚
